Custom shadow boards provide compliance and enhance food safety in FDA-regulated food manufacturing facilities. See how Amerisan's 5S solutions prevent contamination and ensure audits pass.
Food manufacturing facilities operating under FSMA, SQF, BRC, or AIB certification frameworks have specific expectations around tool control and visual management. Shadow boards address these requirements directly — and auditors know it.
Compliance Standards Coverage
Hygienic Design Standards
Amerisan's shadow board systems are designed to the principles of hygienic design — the same engineering discipline used for food contact equipment. This means eliminating places where bacteria can hide, grow, and survive routine cleaning.

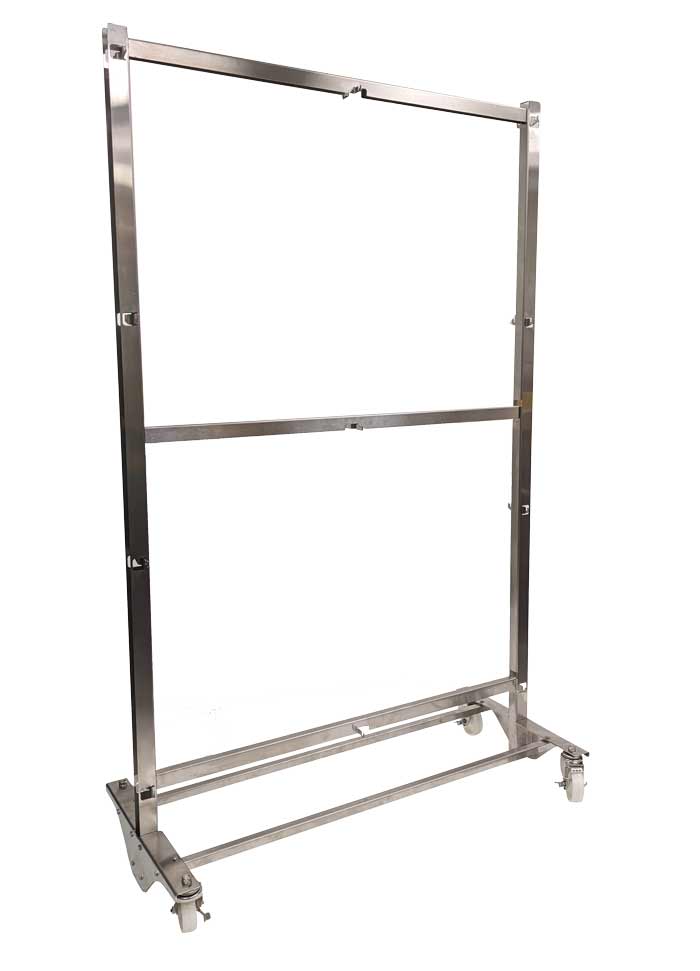

No Sandwich Points
Traditional shadow board frames have crevices between the board and frame where organic material accumulates. Our patented knockdown cart design eliminates 99% of these points.

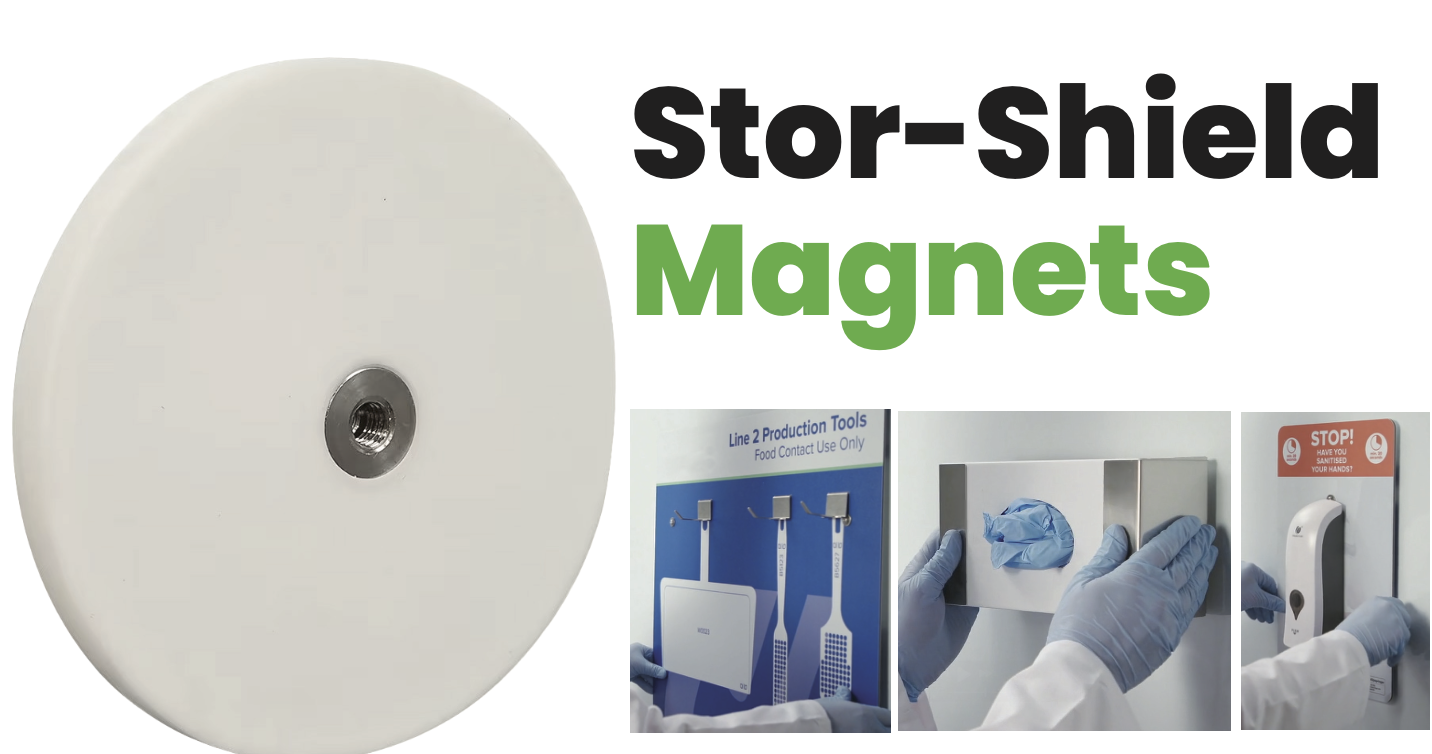

Magnetic Mounting — No Wall Penetration
Drilling holes into walls creates harborage points that are impossible to clean. Amerisan's magnetic mounting system (S7566/S7588) attaches to steel or coated steel surfaces — no holes, no risk. The board lifts off for cleaning behind it.

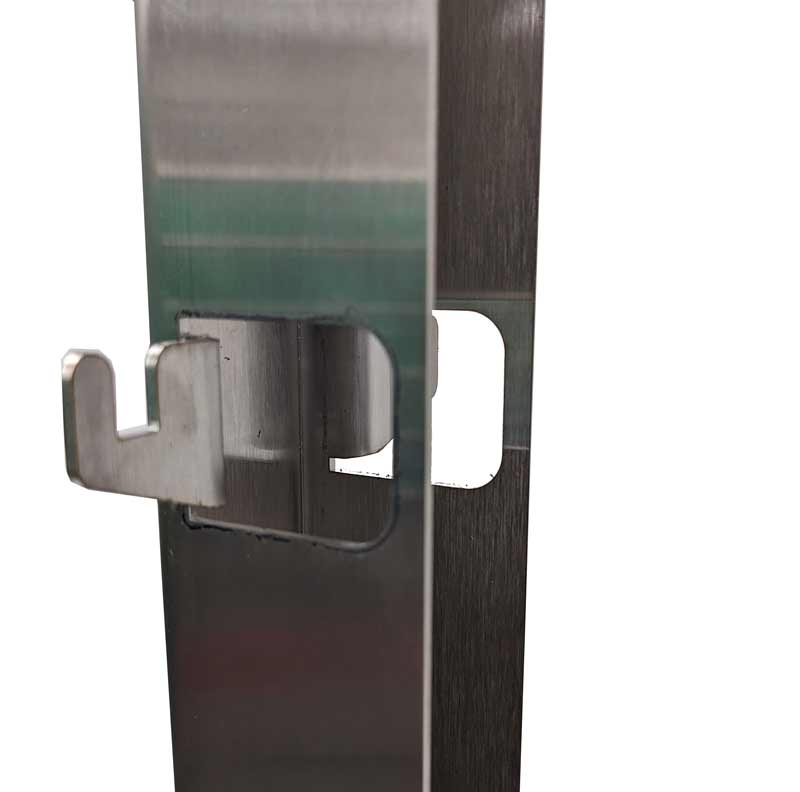

Keyhole Tab Design for Tool-Free Cleaning
On mobile boards, a keyhole tab design lets operators lift the board out of the stainless frame instantly for thorough cleaning of both the board and the frame — no tools, no downtime.

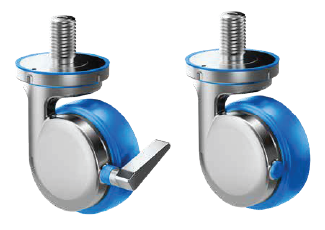

Certified Hygienic Casters
Mobile cart frames use certified hygienic swivel casters with hardened double roller bearings and 2,000N dynamic load capacity — sanitation is never sacrificed for mobility.

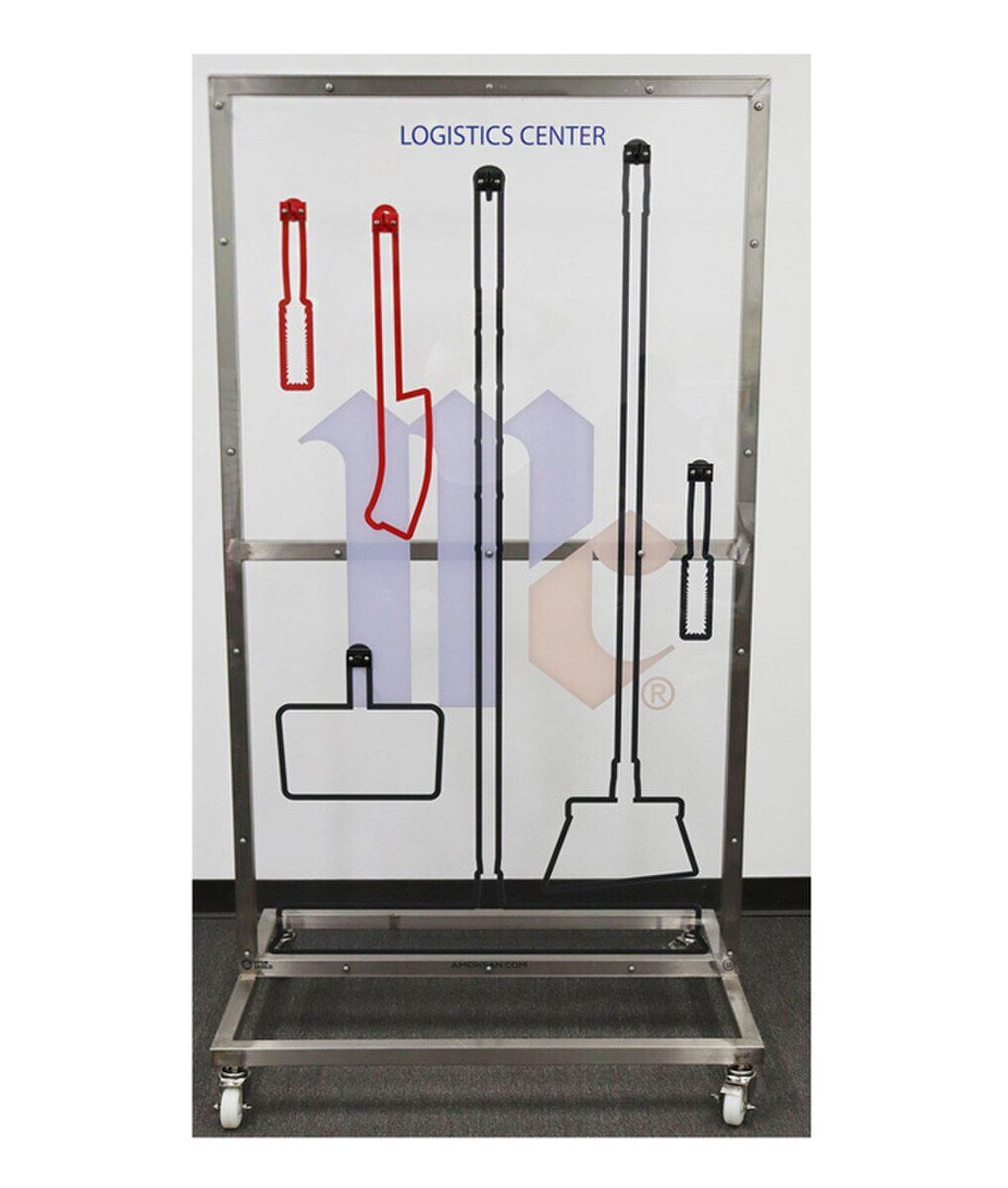

StorClear — See-Through Safety
Amerisan's exclusive StorClear transparent board material lets workers see through the board to spot forklift or pedestrian cross-traffic — a genuine safety advantage in high-traffic food warehouse environments. All food safe, moisture and chemical resistant.
Why Foam Shadow Boards Fail Food Safety Audits
Many industrial shadow boards use foam inserts to hold tools in place. In food environments, foam is a disqualifying material — it's porous, harbors bacteria, and cannot be effectively sanitized. A food safety auditor who sees foam-backed boards in a food-contact or RTE area will flag them.
- Foam cannot withstand chemical sanitizers at food-grade concentrations
- Porous surfaces trap moisture and organic material, accelerating microbial growth
- Foam particles can shed as physical contaminants into product
- Amerisan uses StorShield, StorLam, or stainless steel — zero porosity, fully sanitizable
Ready to Pass Your Next Audit
with Confidence?
Talk to an Amerisan 5S specialist today. We'll design shadow boards built for your specific compliance framework and production environment.
